ABA Z&B SCHLEIFMASCHINEN GMBH ECOLINE 1206A

Description

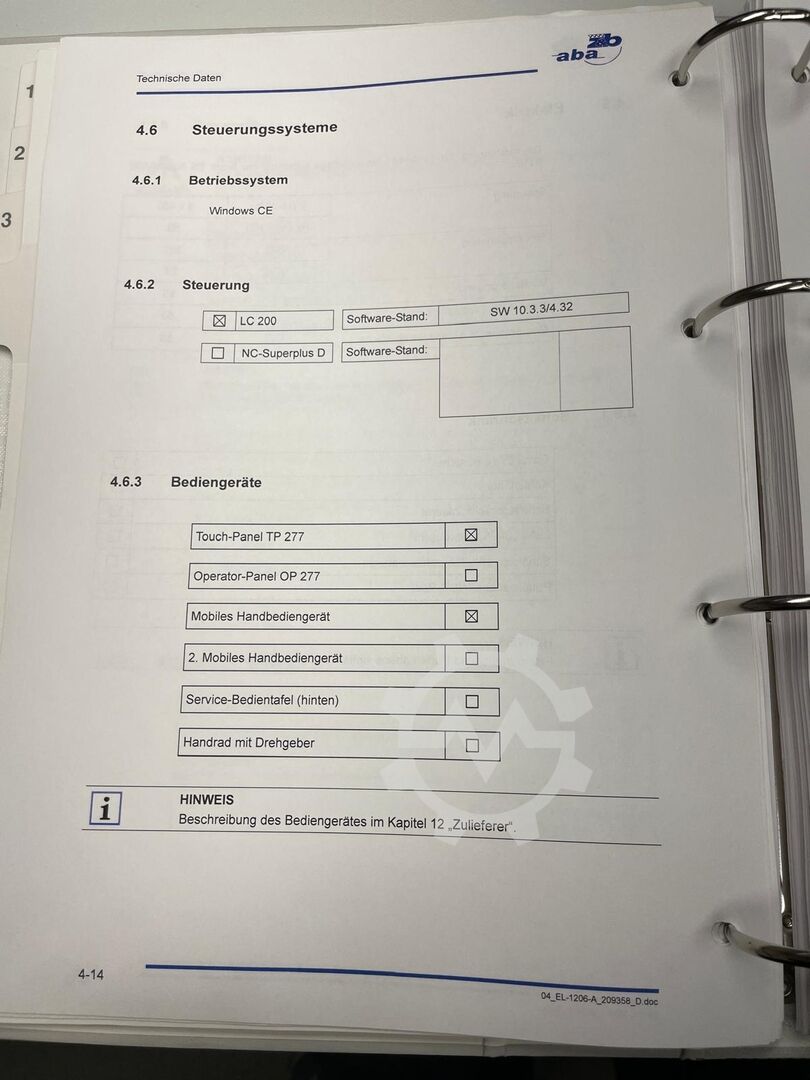

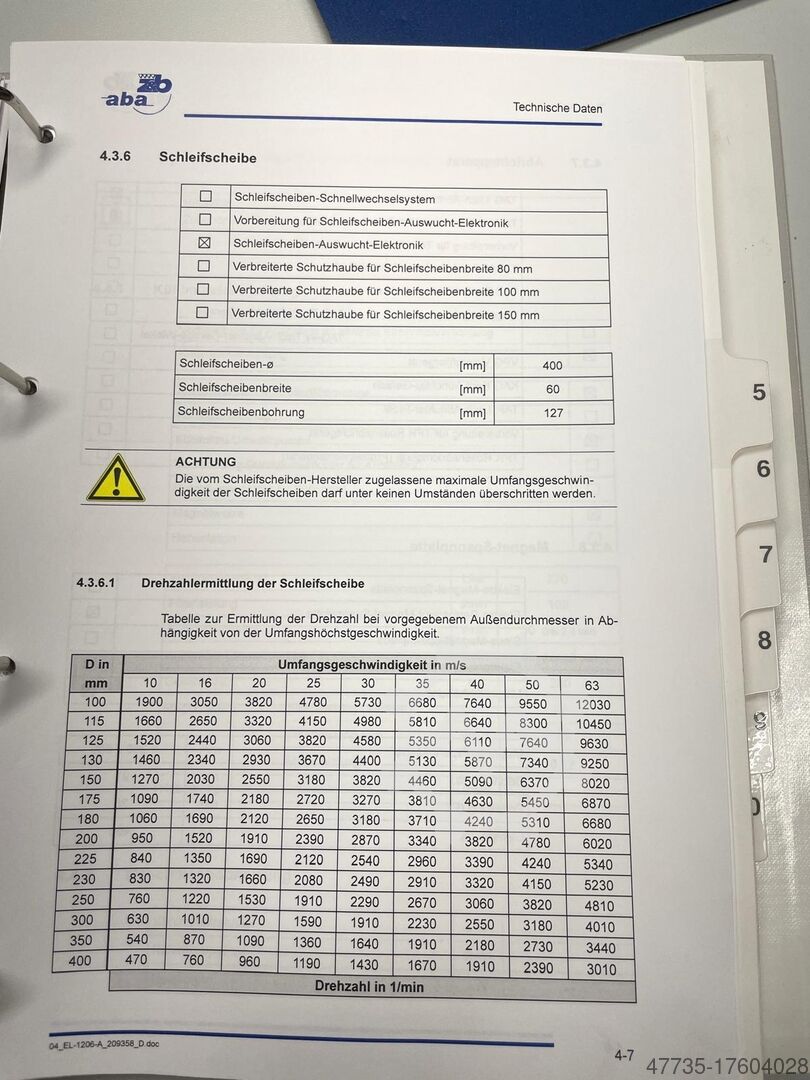

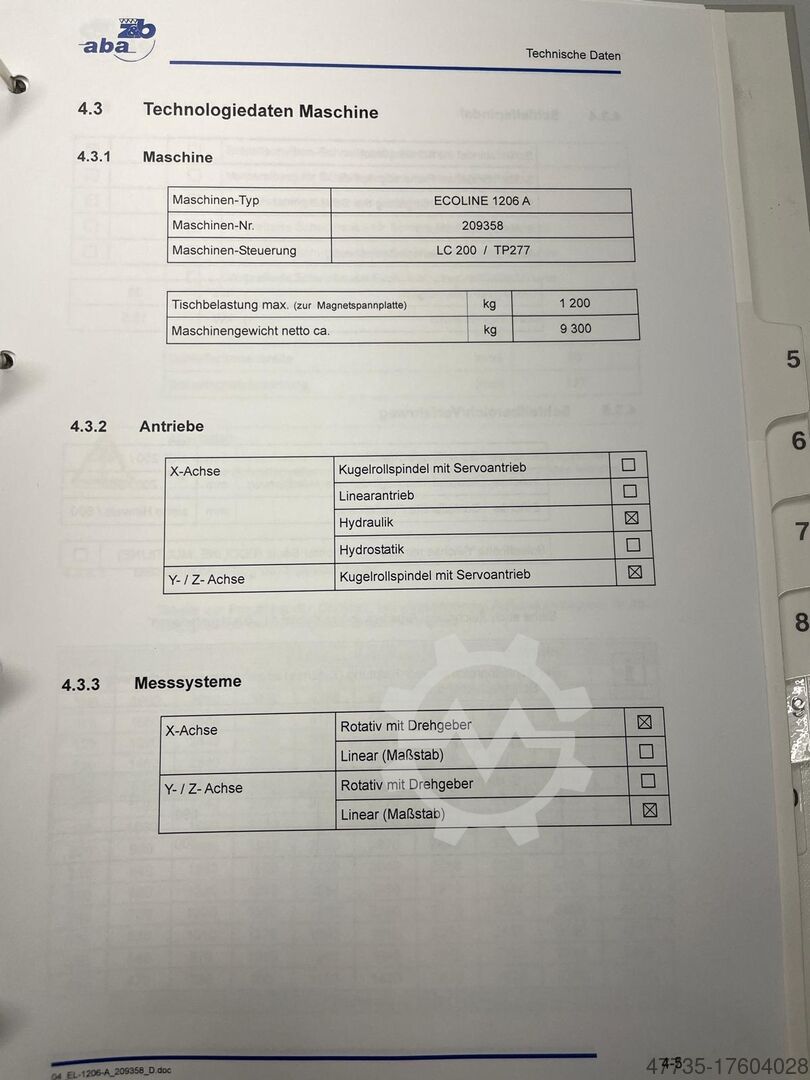

X-axis: Grinding length 1,250 mm, travel distance 1,400 mm Y-axis: table-spindle center distance 700 mm, travel 600 mm Z-axis: grinding width see note, travel 600 mm Note: Grinding range in the cross direction (Z-axis) depends on the travel and the width of the grinding wheel. Example: Cross travel = 600 mm Grinding wheel width 60 mm = grinding width 660 mm Grinding wheel width 100 mm = grinding width 700 mm See photos for more technical data
