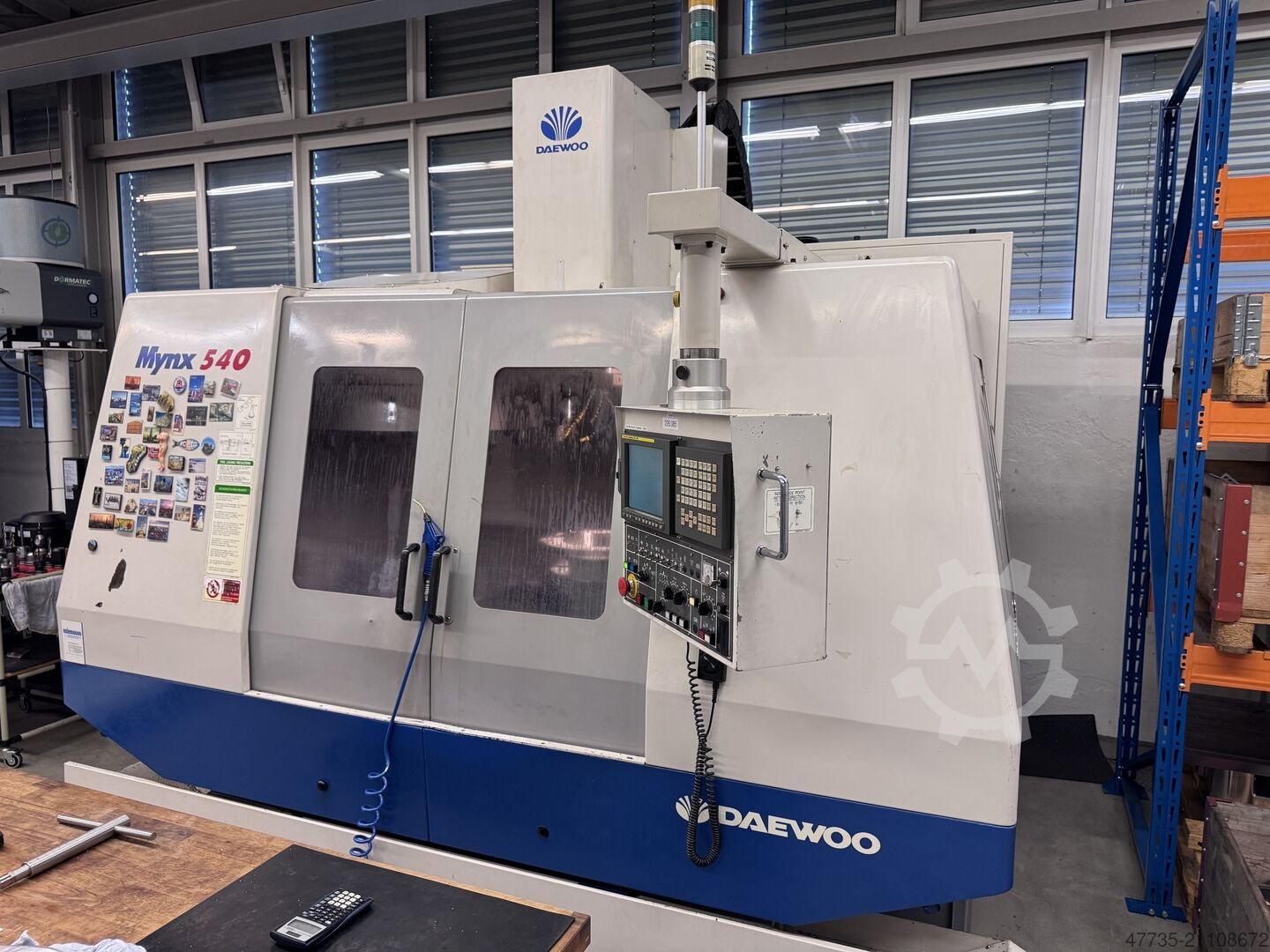

DAEWOO MYNX 540

Description

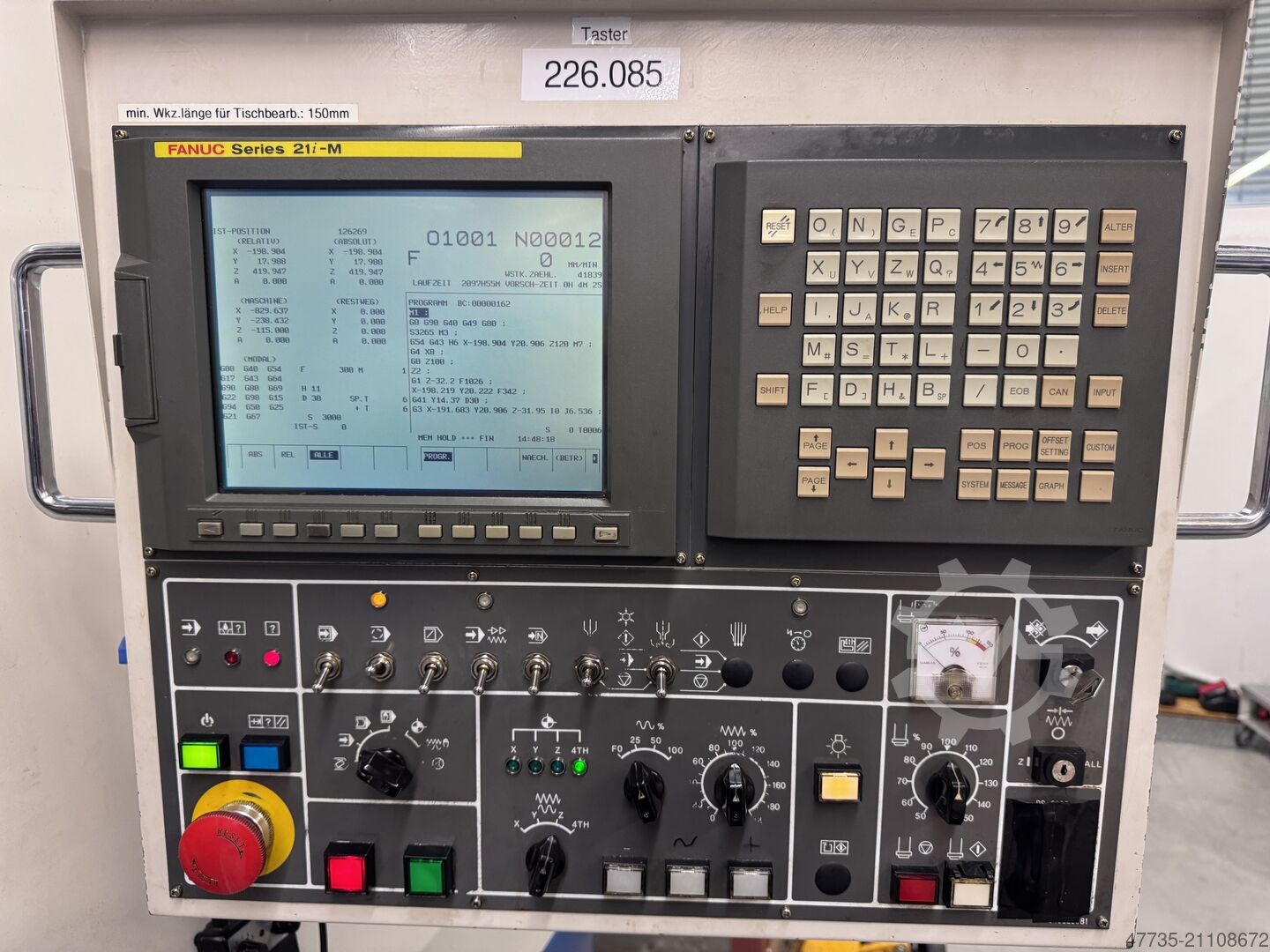

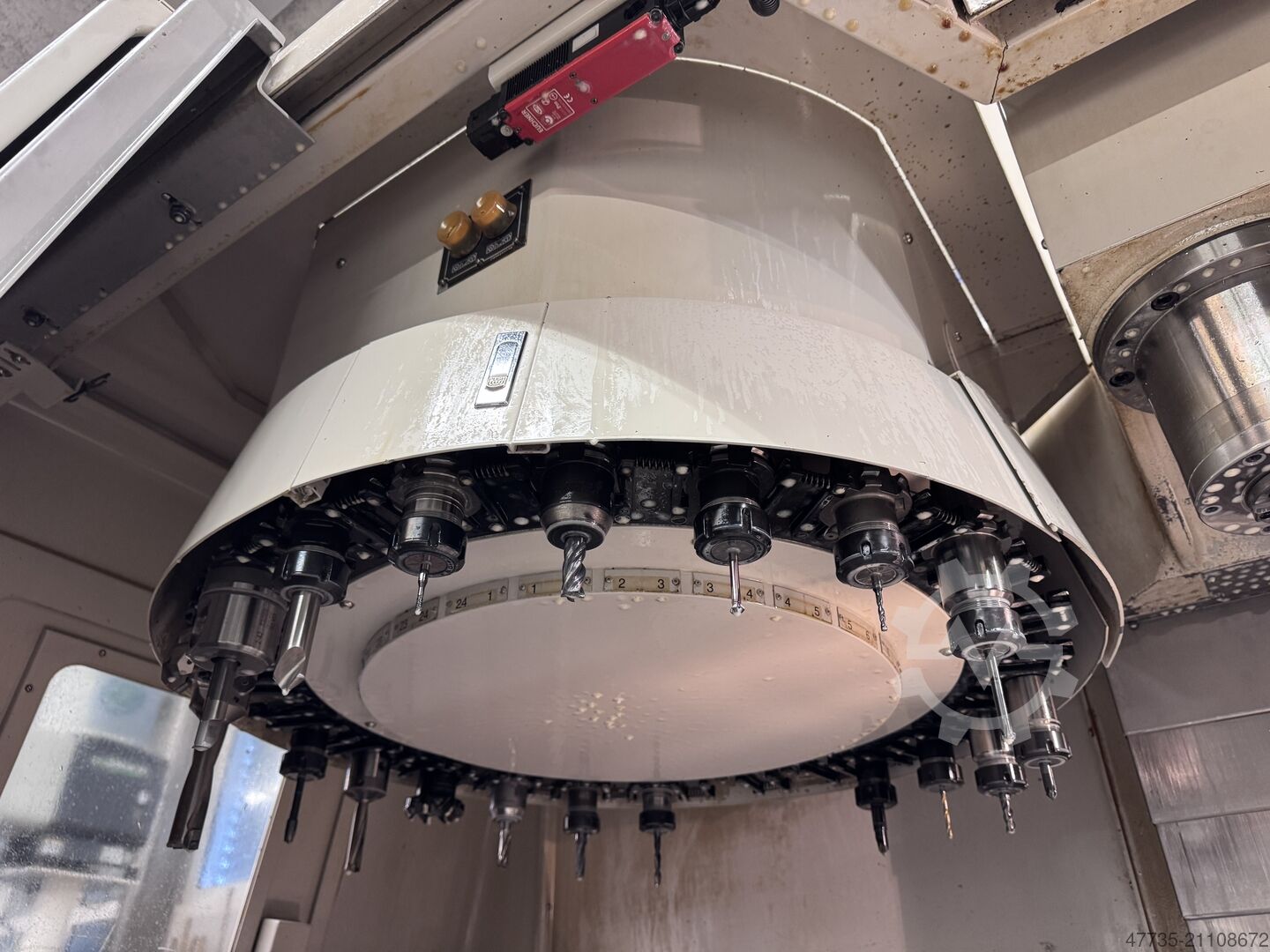

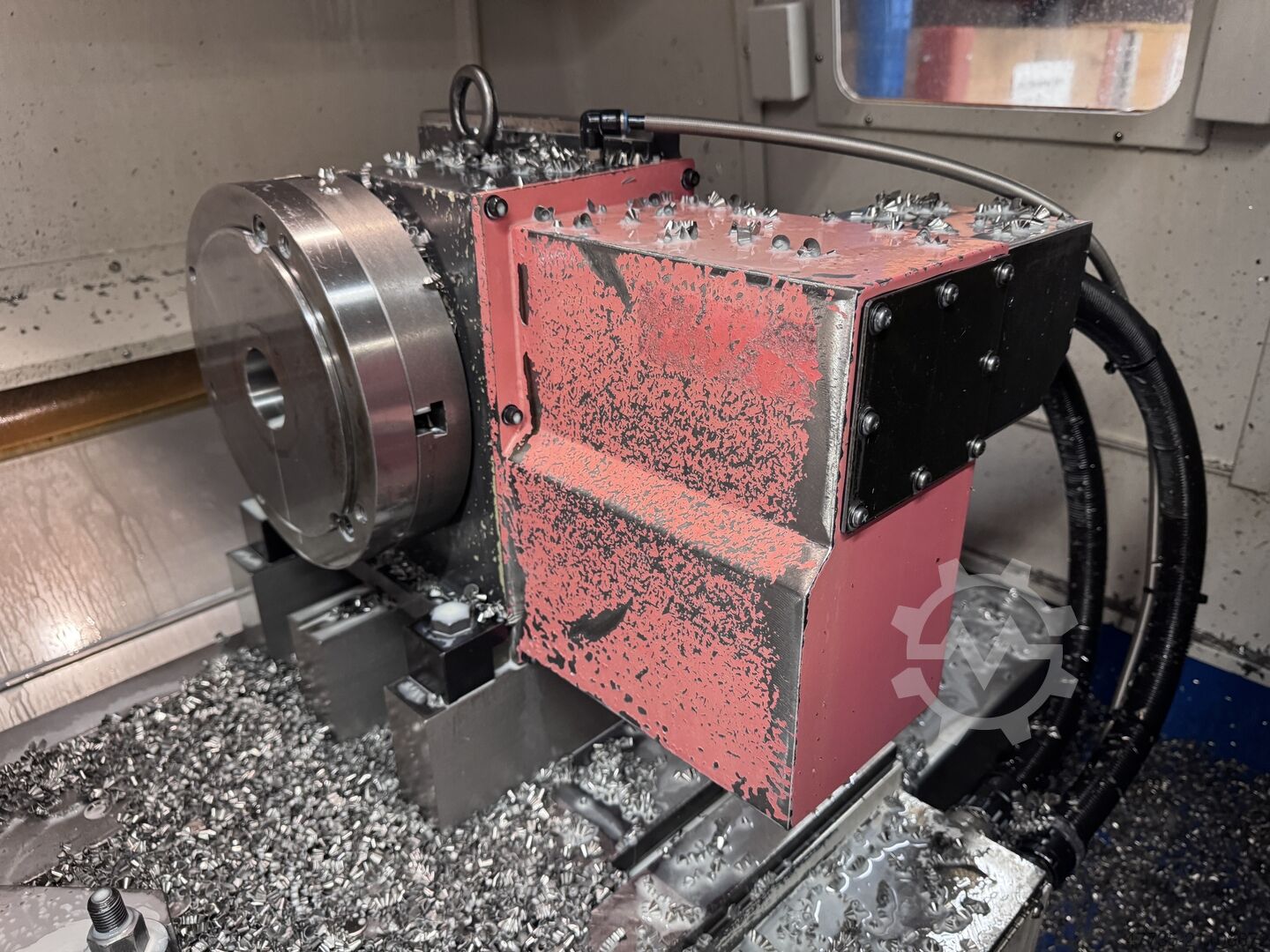

Parts shown by hand are not included with the machine. • Daewoo MYNX 540, year of manufacture 2001 • spindle was overhauled in spring 2025, new bearings! • 4th axis is included in the equipment • ATTENTION: horizontal three-jaw chuck is NOT included Work area: X-axis mm 1020 Y-axis mm 510 Z-axis mm 625 Clamping table: Table dimensions mm 1200 x 500 4 T-slots mm 18H8 T-slot spacing mm 125 Distance between table and spindle head mm 150 - 775 Distance between spindle center and column mm 520 Table load capacity kg 800 Spindle unit: Drive power kW 11/15 Speed range, stepless control min⁻¹ 80 - 8000 Constant power range min⁻¹ 750 - 8000 Max. torque Nm 190 Spindle taper DIN 69871A ISO 40, SK40 Clamping bolt DIN 69872 STANDARD EQUIPMENT • FANUC CNC path control model 21i-MA with 9.5" LCD monochrome screen • Program memory 32 kB/80 m • RIGID TAPPING – thread cutting without compensating holder • Turret magazine for 24 tools • Spindle taper clamping collet ISO 40, DIN 69871A/DIN 69872, SK40 • FANUC AC main drive with 11/15 kW motor • Speed range 80-8000 min⁻¹, stepless • Coolant supply system from 300-liter tank, pump 1.5 bar SPECIAL EQUIPMENT • Spindle oil cooler • Through-spindle coolant supply (Form A) DIN 69871 • With 10 bar pump and cartridge filter • Coolant pump 6 bar • Preparation for 4th axis • KITAGAWA CNC rotary table type RS 250 RAHO • With Fanuc motor and 4th axis in the machine
